ATM Rating
750kg GVM
Available Sizes
6x4, 7x4, 7x5
Warranty
Full Structural
Factory Direct Brisbane Build
Factory Direct • Request A Quote
Single Axle Trailers Overview
Lightweight towing without compromising on strength. Built with solid 45mm round or square axles, slipper leaf springs, Ford stud pattern hubs, and brand new light truck tyres.
Standard Factory Inclusions:
- Heavy-duty 2.1mm - 2.5mm full checkerplate steel floor
- Extended 100x50mm rectangular hollow section (RHS) drawbar
- Solid steel axle with high-capacity Ford bearings
- ADR approved LED submersible lighting and safety chain system
- Tie down rails on all 4 sides for secure load anchoring
- Pre-drilled swing-away jockey wheel bracket
POPULAR MODELS & CONFIGURATIONS
Available Single Axle Trailer Models
Select any model below to view full specifications, Australian ADR compliance details, or request an itemised factory quotation.
FACTORY DIRECT
Single Axle Trailers
6×4 Galvanised Tilt Box Trailer (750kg ATM)
Size: 1800mm x 1200mm (6ft x 4ft)
ATM: 750kg ATM
Factory Direct • Request Quote
FACTORY DIRECT
Single Axle Trailers
7×4 Heavy Duty Single Axle Box Trailer
Size: 2100mm x 1200mm (7ft x 4ft)
ATM: 750kg GVM
Factory Direct • Request Quote
FACTORY DIRECT
Single Axle Trailers
6×4 Heavy Duty Single Axle Box Trailer
Size: 1800mm x 1200mm (6ft x 4ft)
ATM: 750kg GVM
Factory Direct • Request Quote
FACTORY DIRECT
Single Axle Trailers

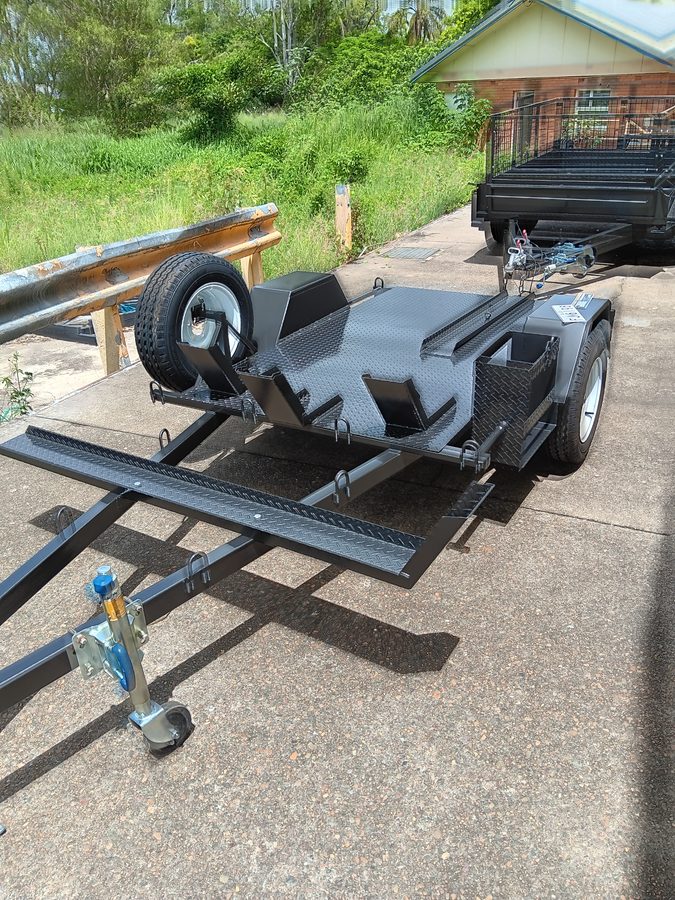

Motorbike & Multi-Bike Carrier Trailer (750kg ATM)
Size: 2100mm x 1200mm (7ft x 4ft)
ATM: 750kg ATM
Factory Direct • Request Quote
Category Specifications & Engineering Standards
| Chassis Framework | Reinforced 50x50x2.5mm and 75x50x3.0mm RHS high-tensile Australian steel cross members. Fully jigged & welded. |
| Drawbar Specification | 100x50x3.0mm extended 1300mm - 1600mm drawbar for effortless towing stability, tighter turning circles, and front toolbox mounting. |
| Flooring & Sides | Full seam-welded 2.1mm - 3.0mm checkerplate steel floor with rigid ribbed sides for maximum structural integrity. |
| Axle & Suspension | Solid 45mm/50mm square axles with heavy-duty eye-to-eye slipper or 7-leaf commercial rocker roller suspension systems. |
| Surface Finish Options | Complete 100% hot-dip galvanised anti-rust bath inside and out, or industrial 2-pack heavy polyurethane enamel coating. |
| Wheels & Tyres | Brand new commercial light truck radial tyres mounted on heavy-duty steel white Sunraysia rims (Ford 5-stud or LandCruiser 6-stud pattern). |
| Braking System | Mechanical disc override brakes (up to 2000kg ATM) or 4-wheel electric drum brakes with emergency breakaway battery system (above 2000kg ATM). |
| Australian Compliance | Supplied with official VIN plate, Department of Transport & Main Roads (TMR QLD) Roadworthy / Safety Certificate ready for instant over-the-counter registration. |
DIRECT FACTORY INQUIRY
Request an Itemised Quote for Single Axle Trailers
Fill out your desired configuration below and our Brisbane workshop will return a formal wholesale quote within 2-4 business hours.
