ATM Rating
750kg - 2800kg
Available Sizes
7x4, 7x5, 8x5, 10x5
Warranty
Full Structural
Factory Direct Brisbane Build
Factory Direct • Request A Quote
Tradesman Top Trailers Overview
Heavy duty locked canopies with dual side lift-up doors on gas struts, internal shelf dividers, compressor boxes, and heavy duty top ladder racks. Built tough for Brisbane trades.
Standard Factory Inclusions:
- Heavy-duty 2.1mm - 2.5mm full checkerplate steel floor
- Extended 100x50mm rectangular hollow section (RHS) drawbar
- Solid steel axle with high-capacity Ford bearings
- ADR approved LED submersible lighting and safety chain system
- Tie down rails on all 4 sides for secure load anchoring
- Pre-drilled swing-away jockey wheel bracket
POPULAR MODELS & CONFIGURATIONS
Available Tradesman Top Trailer Models
Select any model below to view full specifications, Australian ADR compliance details, or request an itemised factory quotation.
FACTORY DIRECT
Tradesman Top Trailers

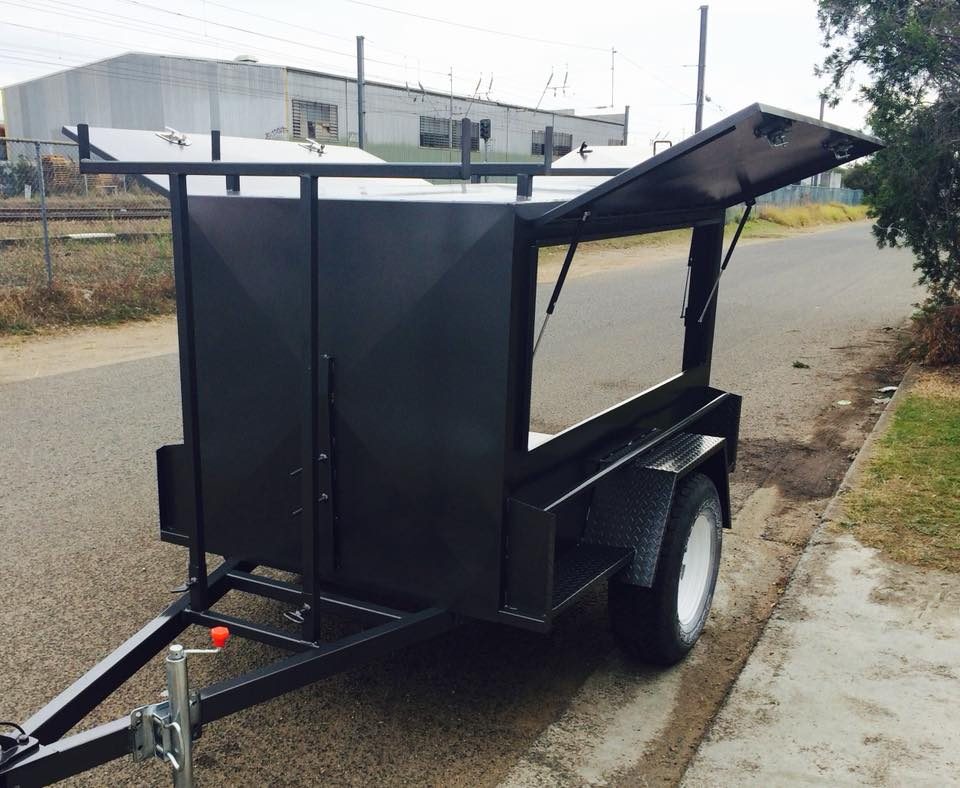

8×5 Commercial Tandem Tradesman Workstation Trailer
Size: 2400mm x 1500mm (8ft x 5ft)
ATM: 2000kg ATM
Factory Direct • Request Quote
FACTORY DIRECT
Tradesman Top Trailers

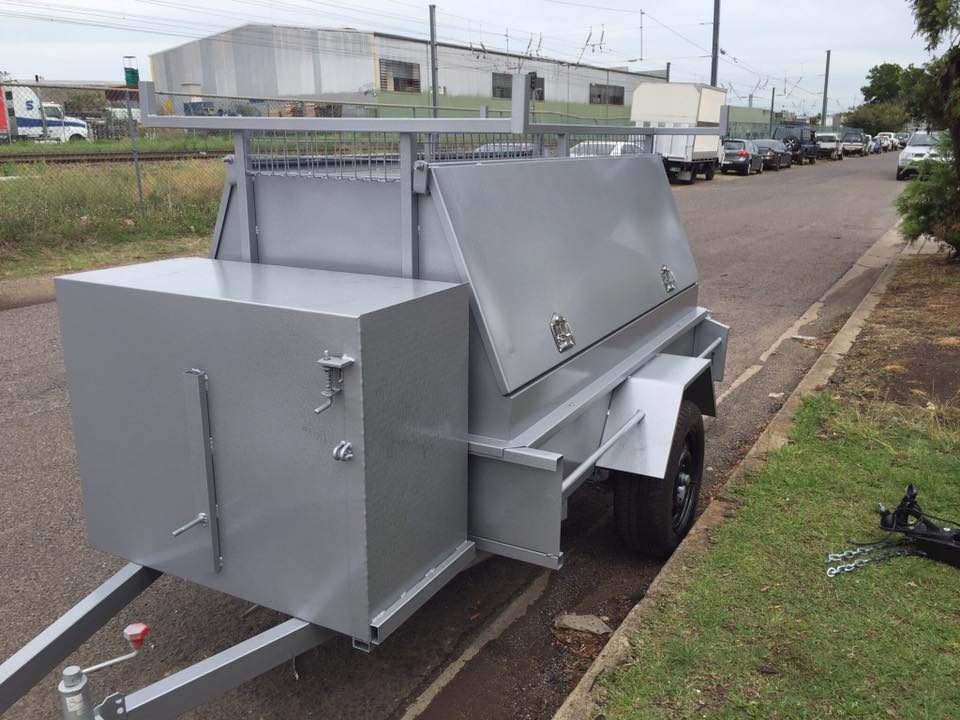

7×4 / 7×5 Tradie Canopy Trailer with Gullwing Doors
Size: 2100mm x 1200mm / 1500mm (7ft x 4ft / 5ft)
ATM: 1400kg ATM
Factory Direct • Request Quote
FACTORY DIRECT
Tradesman Top Trailers

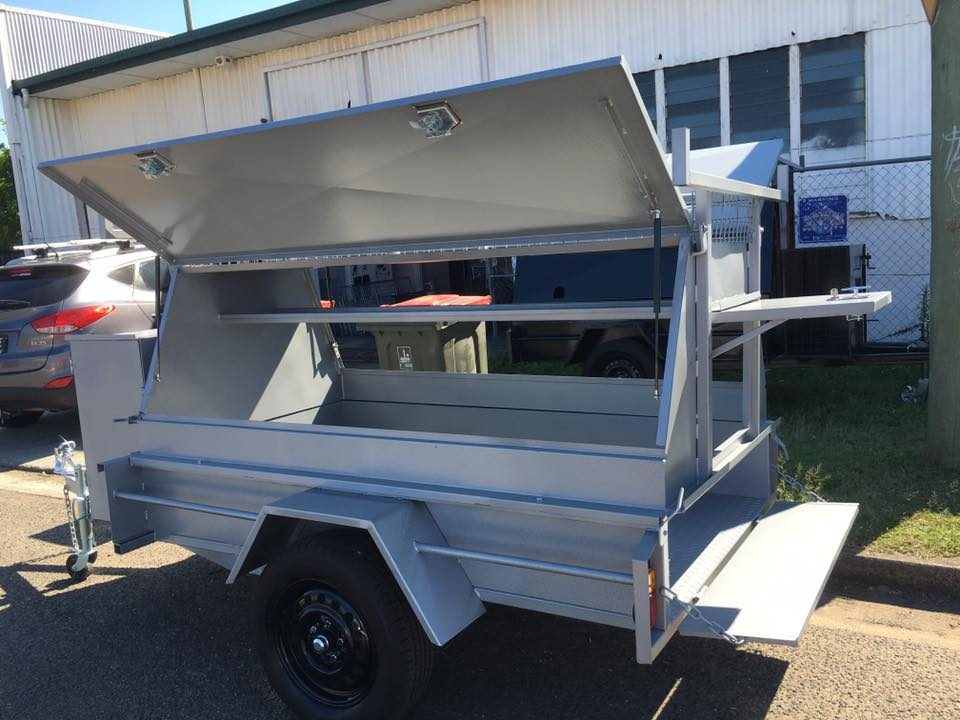

8×5 Commercial Dual Gullwing Tradie Trailer (Gas Struts)
Size: 2400mm x 1500mm (8ft x 5ft)
ATM: 2000kg ATM
Factory Direct • Request Quote
Category Specifications & Engineering Standards
| Chassis Framework | Reinforced 50x50x2.5mm and 75x50x3.0mm RHS high-tensile Australian steel cross members. Fully jigged & welded. |
| Drawbar Specification | 100x50x3.0mm extended 1300mm - 1600mm drawbar for effortless towing stability, tighter turning circles, and front toolbox mounting. |
| Flooring & Sides | Full seam-welded 2.1mm - 3.0mm checkerplate steel floor with rigid ribbed sides for maximum structural integrity. |
| Axle & Suspension | Solid 45mm/50mm square axles with heavy-duty eye-to-eye slipper or 7-leaf commercial rocker roller suspension systems. |
| Surface Finish Options | Complete 100% hot-dip galvanised anti-rust bath inside and out, or industrial 2-pack heavy polyurethane enamel coating. |
| Wheels & Tyres | Brand new commercial light truck radial tyres mounted on heavy-duty steel white Sunraysia rims (Ford 5-stud or LandCruiser 6-stud pattern). |
| Braking System | Mechanical disc override brakes (up to 2000kg ATM) or 4-wheel electric drum brakes with emergency breakaway battery system (above 2000kg ATM). |
| Australian Compliance | Supplied with official VIN plate, Department of Transport & Main Roads (TMR QLD) Roadworthy / Safety Certificate ready for instant over-the-counter registration. |
