ATM Rating
2000kg - 3500kg
Available Sizes
8x5, 10x5, 10x6, 12x6
Warranty
Full Structural
Factory Direct Brisbane Build
Factory Direct • Request A Quote
Tandem Trailers Overview
Built for high payload capacity with rocker roller suspension, mechanical or electric brakes, heavy 2.5mm checkerplate floor, and 100x50x3mm extended drawbars.
Standard Factory Inclusions:
- Heavy-duty 2.1mm - 2.5mm full checkerplate steel floor
- Extended 100x50mm rectangular hollow section (RHS) drawbar
- Solid steel axle with high-capacity Ford bearings
- ADR approved LED submersible lighting and safety chain system
- Tie down rails on all 4 sides for secure load anchoring
- Pre-drilled swing-away jockey wheel bracket
POPULAR MODELS & CONFIGURATIONS
Available Tandem Trailer Models
Select any model below to view full specifications, Australian ADR compliance details, or request an itemised factory quotation.
FACTORY DIRECT
Tandem Trailers

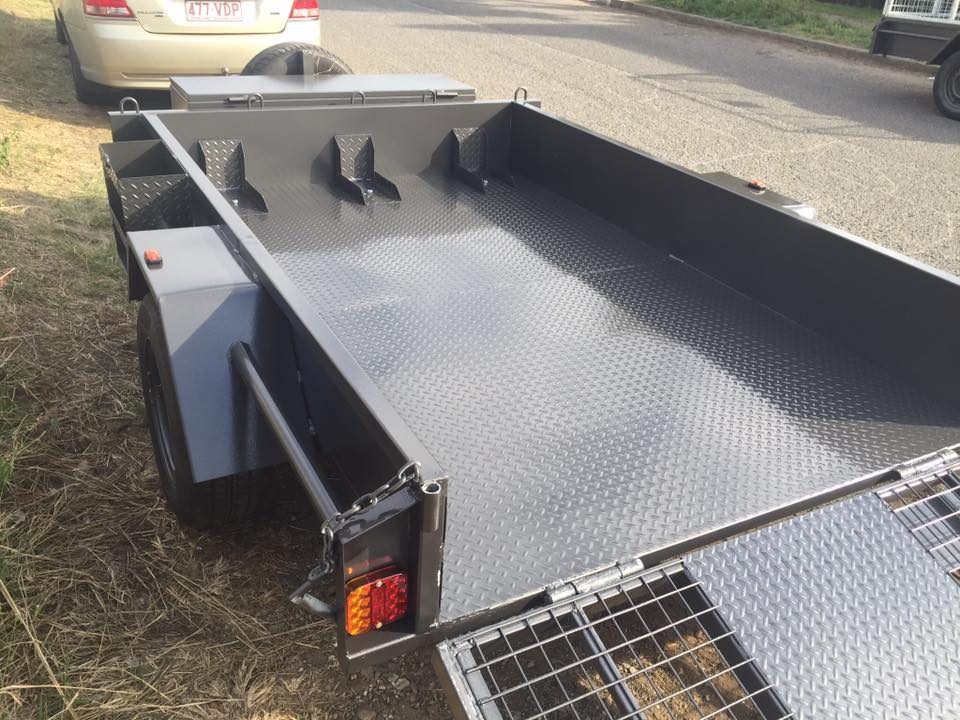

8×5 Commercial Tandem Axle Box Trailer (2000kg ATM)
Size: 2400mm x 1500mm (8ft x 5ft)
ATM: 2000kg ATM
Factory Direct • Request Quote
FACTORY DIRECT
Tandem Trailers
8×5 Hot-Dip Galvanised Tandem Box Trailer (2000kg ATM)
Size: 2400mm x 1500mm (8ft x 5ft)
ATM: 2000kg ATM
Factory Direct • Request Quote
FACTORY DIRECT
Tandem Trailers
16×6.6 Commercial Beavertail Car Hauler (3000kg ATM)
Size: 4800mm x 2000mm (16ft x 6ft 6in)
ATM: 3000kg ATM
Factory Direct • Request Quote
FACTORY DIRECT
Tandem Trailers
10×5 Heavy Duty Mini Excavator Plant Trailer (3500kg ATM)
Size: 3000mm x 1500mm (10ft x 5ft)
ATM: 3500kg ATM
Factory Direct • Request Quote
Category Specifications & Engineering Standards
| Chassis Framework | Reinforced 50x50x2.5mm and 75x50x3.0mm RHS high-tensile Australian steel cross members. Fully jigged & welded. |
| Drawbar Specification | 100x50x3.0mm extended 1300mm - 1600mm drawbar for effortless towing stability, tighter turning circles, and front toolbox mounting. |
| Flooring & Sides | Full seam-welded 2.1mm - 3.0mm checkerplate steel floor with rigid ribbed sides for maximum structural integrity. |
| Axle & Suspension | Solid 45mm/50mm square axles with heavy-duty eye-to-eye slipper or 7-leaf commercial rocker roller suspension systems. |
| Surface Finish Options | Complete 100% hot-dip galvanised anti-rust bath inside and out, or industrial 2-pack heavy polyurethane enamel coating. |
| Wheels & Tyres | Brand new commercial light truck radial tyres mounted on heavy-duty steel white Sunraysia rims (Ford 5-stud or LandCruiser 6-stud pattern). |
| Braking System | Mechanical disc override brakes (up to 2000kg ATM) or 4-wheel electric drum brakes with emergency breakaway battery system (above 2000kg ATM). |
| Australian Compliance | Supplied with official VIN plate, Department of Transport & Main Roads (TMR QLD) Roadworthy / Safety Certificate ready for instant over-the-counter registration. |
DIRECT FACTORY INQUIRY
Request an Itemised Quote for Tandem Trailers
Fill out your desired configuration below and our Brisbane workshop will return a formal wholesale quote within 2-4 business hours.
