ATM Rating
2500kg - 3500kg
Available Sizes
Up to 2.4m Drum Diameter
Warranty
Full Structural
Factory Direct Brisbane Build
Factory Direct • Request A Quote
Cable Drum Trailers Overview
Built specifically for utility, telecommunications, and electrical contractors. High-tensile solid spindle bar, bronze/nylon bushings, quick-lock safety retaining pins, and rear stabiliser legs.
Standard Factory Inclusions:
- High-tensile solid steel spindle bar with secure safety lock pins
- Extended 100x50mm rectangular hollow section (RHS) drawbar
- Rear wind-down stabiliser legs for safe onsite spool rotation
- ADR approved LED submersible lighting and safety chain system
- Heavy RHS subframe engineered for dynamic rotational cable loads
- Pre-drilled swing-away jockey wheel bracket
POPULAR MODELS & CONFIGURATIONS
Available Cable Drum Trailer Models
Select any model below to view full specifications, Australian ADR compliance details, or request an itemised factory quotation.
FACTORY DIRECT
Cable Drum Trailers

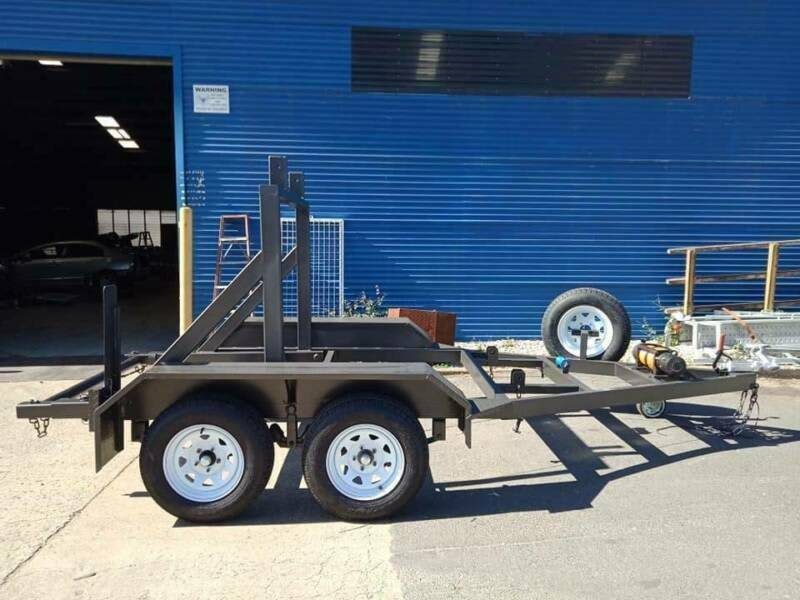

Heavy Duty Commercial Cable Drum Carrier (3000kg ATM)
Size: Accommodates Up to 2.4m Diameter Spools
ATM: 3000kg ATM
Factory Direct • Request Quote
FACTORY DIRECT
Cable Drum Trailers

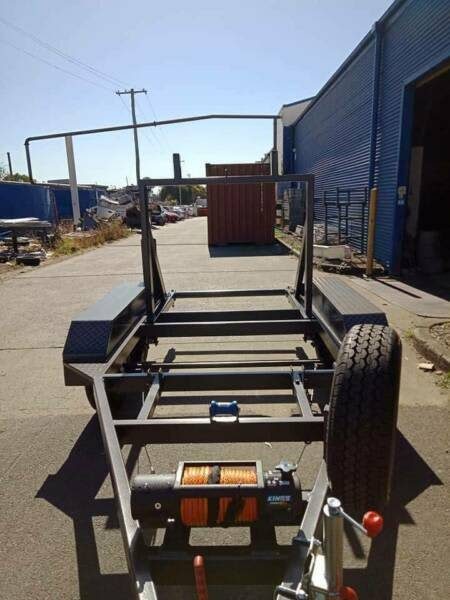

Compact Electrical Cable Spool Carrier (2500kg ATM)
Size: Accommodates Up to 1.8m Diameter Spools
ATM: 2500kg ATM
Factory Direct • Request Quote
FACTORY DIRECT
Cable Drum Trailers

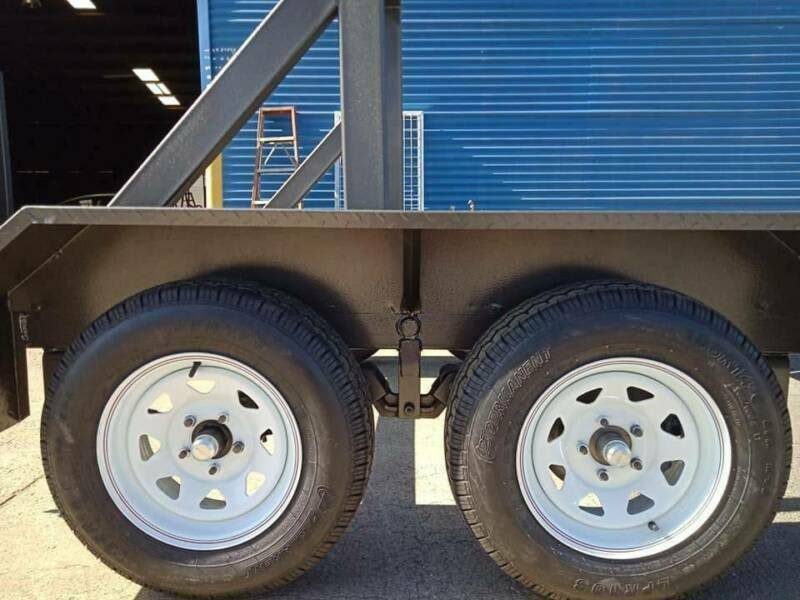

Civil & Telecommunications Cable Drum Trailer (3500kg ATM)
Size: Accommodates Up to 2.4m Heavy Spools
ATM: 3500kg ATM
Factory Direct • Request Quote
FACTORY DIRECT
Cable Drum Trailers

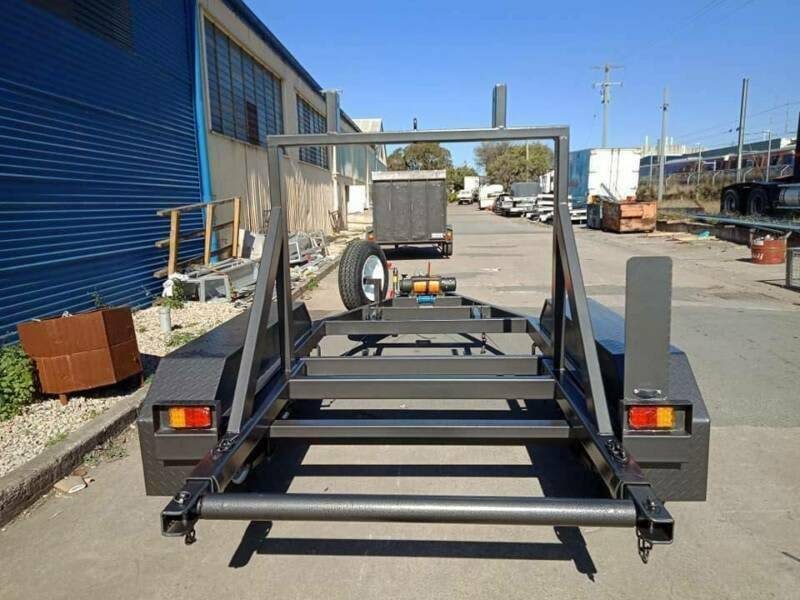

Heavy Duty Dual-Spindle Drum Trailer (3500kg ATM)
Size: Heavy Duty Multi-Spool Rig Configuration
ATM: 3500kg ATM
Factory Direct • Request Quote
Category Specifications & Engineering Standards
| Chassis Framework | Reinforced 50x50x2.5mm and 75x50x3.0mm RHS high-tensile Australian steel cross members. Fully jigged & welded. |
| Drawbar Specification | 100x50x3.0mm extended 1300mm - 1600mm drawbar for effortless towing stability, tighter turning circles, and front toolbox mounting. |
| Flooring & Sides | Full seam-welded 2.1mm - 3.0mm checkerplate steel floor with rigid ribbed sides for maximum structural integrity. |
| Axle & Suspension | Solid 45mm/50mm square axles with heavy-duty eye-to-eye slipper or 7-leaf commercial rocker roller suspension systems. |
| Surface Finish Options | Complete 100% hot-dip galvanised anti-rust bath inside and out, or industrial 2-pack heavy polyurethane enamel coating. |
| Wheels & Tyres | Brand new commercial light truck radial tyres mounted on heavy-duty steel white Sunraysia rims (Ford 5-stud or LandCruiser 6-stud pattern). |
| Braking System | Mechanical disc override brakes (up to 2000kg ATM) or 4-wheel electric drum brakes with emergency breakaway battery system (above 2000kg ATM). |
| Australian Compliance | Supplied with official VIN plate, Department of Transport & Main Roads (TMR QLD) Roadworthy / Safety Certificate ready for instant over-the-counter registration. |
