6×4 Galvanised Tilt Box Trailer (750kg ATM)
ATM Rating
750kg ATM
Payload: ~1580kg
Internal Deck
2400 × 1500mm
(8ft × 5ft Internal)
Warranty
Full Structural
Australian Steel
CERTIFIED AUSTRALIAN DESIGN RULES (ADR)
Supplied with full official VIN plate and Department of Transport & Main Roads (TMR QLD) Safety Certificate ready for instant over-the-counter registration.
Direct Factory Manufacturer
Factory Direct Wholesale
The Brisbane A1 6×4 Galvanised Tilt Box Trailer (750kg ATM) is engineered from premium Australian steel to handle heavy trade materials, landscaping loads, machinery parts, and commercial haulage across South East Queensland. Seam-welded checkerplate floor, dual 45mm solid axles, and an extended 100x50mm RHS drawbar come standard.
STANDARD FACTORY INCLUSIONS:
- Full seam-welded 2.1mm - 2.5mm heavy-duty checkerplate steel floor
- Extended 100x50mm rectangular hollow section (RHS) drawbar (1400mm)
- ADR-compliant mechanical disc override brakes with cable handbrake
- Multi-leaf commercial tandem slipper / rocker roller suspension
- Heavy-duty rolled mudguards with Brisbane A1 branded mudflaps
- Full-width heavy-duty drop tailgate with safety chain hooks & spring latches
- Continuous tie rails along all 4 sides for secure load anchoring
- ADR approved waterproof submersible LED lights & safety chains
- Pre-drilled swivel jockey wheel bracket & 50mm quick-release coupling
Factory Handover in Rocklea, Brisbane: Standard tandem models fabricated and stocked for prompt collection. Custom cage heights, toolboxes, and ramp options fitted on-site.
8×5 Tandem Technical Specifications & Engineering
| Model Description | 8×5 Commercial Tandem Axle Heavy-Duty Box Trailer |
| Internal Deck Dimensions | 2400mm (Length) × 1500mm (Width) / 8ft × 5ft internal cargo floor |
| ATM Rating | 750kg ATM Rating |
| Chassis Framework | Reinforced 50×50×2.5mm & 75×50×3.0mm RHS high-tensile Australian steel cross members. Fully jigged & continuous seam-welded. |
| Drawbar Specification | Extended 100×50×3.0mm rectangular hollow section (RHS) drawbar (1400mm length) for maximum towing stability and easier reversing. |
| Flooring & Sides | Full seam-welded 2.1mm - 2.5mm heavy-duty non-slip checkerplate steel deck. 300mm standard ribbed rigid side walls (400mm high sides optional). |
| Braking System | ADR-approved mechanical disc override brakes with cable handbrake lever. (Electric brakes option available for higher ATM upgrades). |
| Suspension Setup | Heavy-duty commercial tandem eye-to-eye slipper or 7-leaf rocker roller equalizer spring suspension. |
| Coupling & Safety | Australian ADR compliant 50mm quick-release ball coupling, dual rated safety chains with rated D-shackles. |
| Mudguards & Flaps | Heavy-duty rolled checkerplate mudguards with reinforced steps and Brisbane A1 Trailers branded heavy-duty mudflaps. |
| Wheels & Tyres | Brand new commercial light truck radial tyres mounted on white Sunraysia steel rims (Ford 5-stud pattern). |
| Electrical & Lighting | 12V submersible waterproof LED lamps (stop, tail, indicator, and licence plate light) with standard 7-pin flat Australian plug. |
| Surface Finish | Industrial heavy 2-pack charcoal/black polyurethane enamel finish with anti-corrosion zinc undercoat (Hot-Dip Galvanised option available). |
| Registration Ready | Supplied with official VIN plate & QLD Department of Transport (TMR) Safety / Roadworthy Certificate for immediate over-the-counter registration. |
ROCKLEA WORKSHOP PHOTOS
8×5 Tandem Build Angle Showcase
Detailed photos of the genuine 6x4 Galvanised Tilt Box Trailer (750kg ATM) build manufactured at our Rocklea facility.
3/4 Perspective Angle
Dual 45mm Solid Axles • Mudguards • Tie Rails

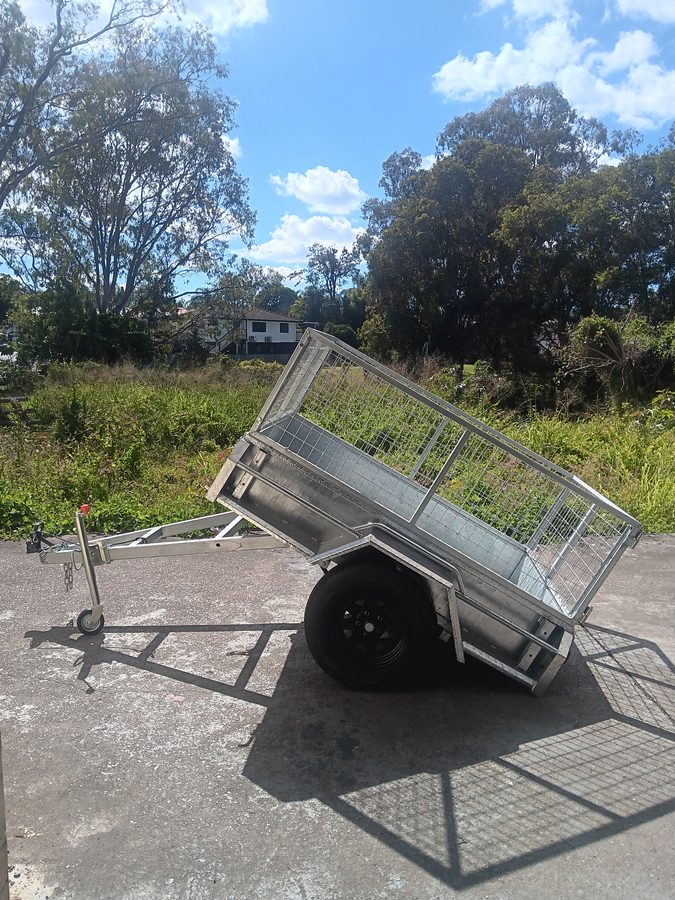

Extended RHS Drawbar
100x50mm RHS • ADR Coupling • Swivel Jockey Mount

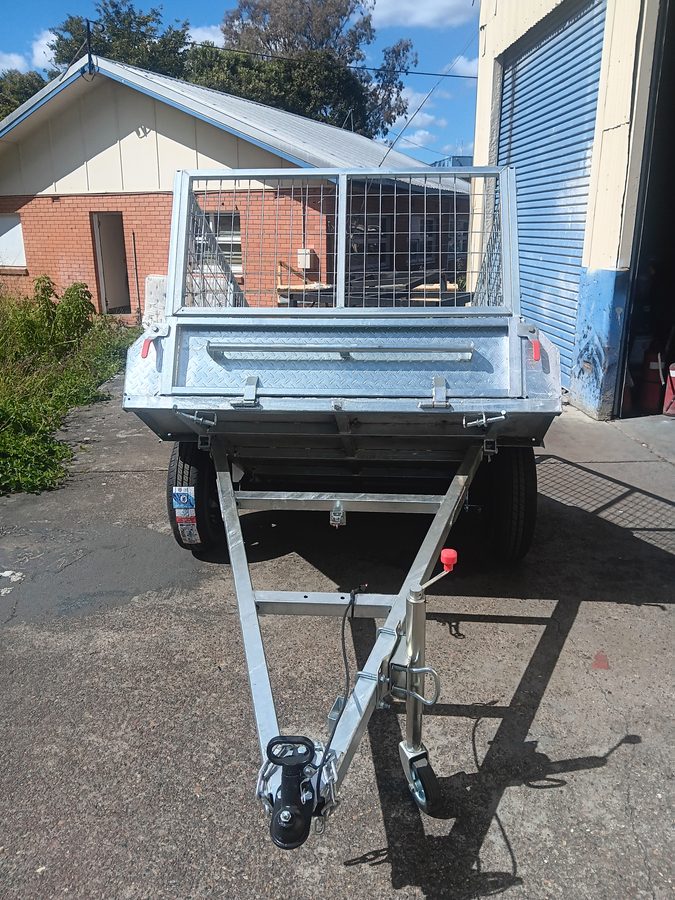

Tandem Axles & Mudguards
Checkerplate Steps • Sunraysia Wheels • Heavy Springs

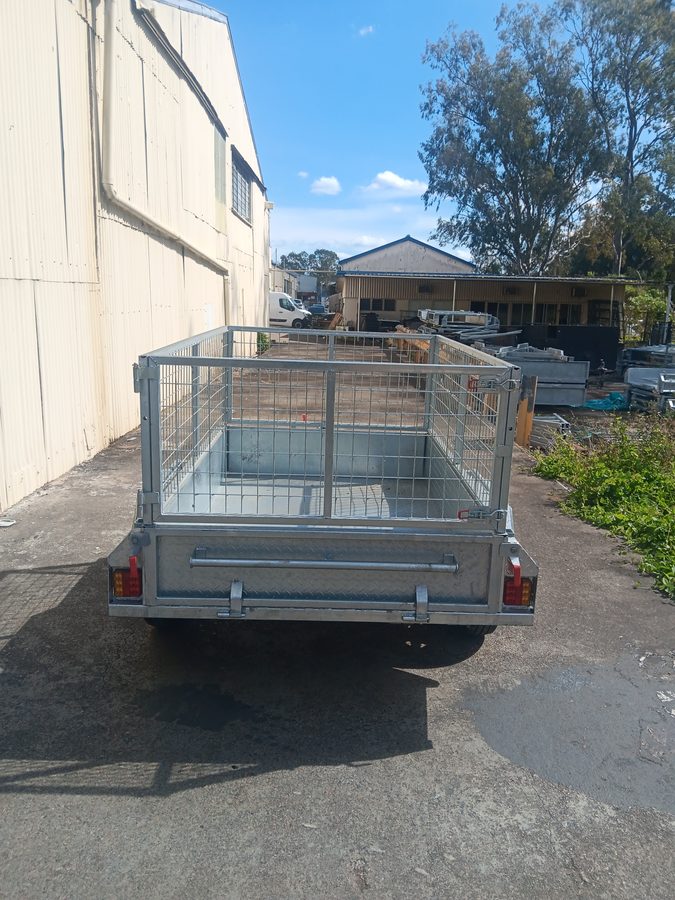

Full Rear Drop Tailgate
Drop Tailgate • Brisbane A1 Mudflaps • Submersible LEDs
Checkerplate Deck Floor
2.1mm - 2.5mm Seam-Welded • High Rigid Sides
